상세 정보 |
|||
| 모델 번호: | N133-2424TBBIG26-H12 | 디스플레이 해상도: | 240*240 |
|---|---|---|---|
| 인터페이스: | SPI / MCU | 개요 크기 (mm): | 26.16 × 29.22 × 1.5 mm |
| 활성 지역 (MM): | 23.4 × 23.4 mm | 드라이버 IC: | ST7789V3 |
| 명도: | 350cd/m2 | 작동 온도: | -20℃~70℃ |
| 스토리지 온도: | -30C ~ 80C | ||
| 강조하다: | 1.33 inch TFT LCD module,240x240 RGB TFT display,ST7789V3 IC LCD module |
||
제품 설명
| Model NO. | N133-2424TBBIG26-H12 |
| Size | 1.33 inch |
| Resolution | 80*RGB*160 |
| Interface | 4Line SPI |
| LCD Type | TFT-LCD |
| Viewing Direction | All |
| Outline Dimension | 26.16×29.22×1.5 mm |
| Active Size | 23.4×23.4 mm |
| Specification | ROHS REACH ISO |
| Operating Temp | -20ºC ~ +70ºC |
| Storage Temp | -30ºC ~ +80ºC |
| IC Driver | ST7789V3 |
| Brightness | 350CD/M2 |
| Application | Portable electronics; Automotive displays; Industrial equipment; Medical devices; Home automation systems; Consumer electronics |
| Country of Origin | China |
Application

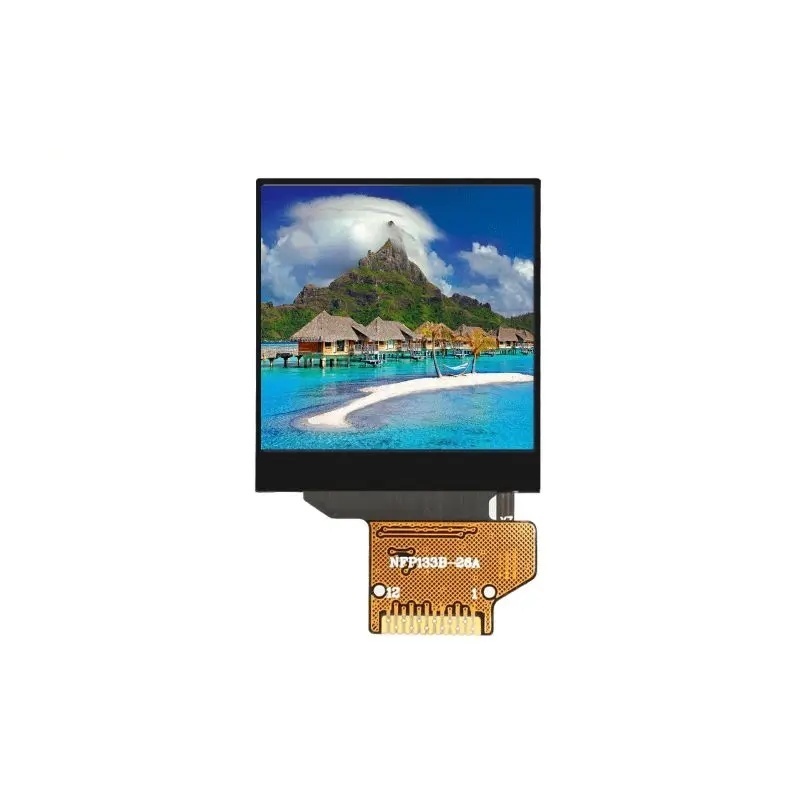

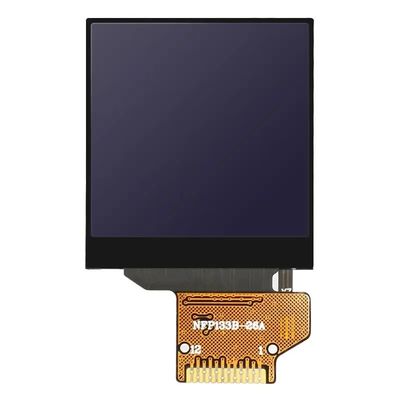

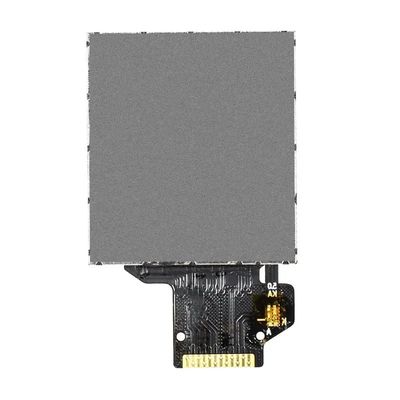

The N133-2424TBBIG26-H12(1.33inch 240*240pixels TFT LCD) is suitable for a wide range of applications, including:
-
Smart Meters: Displaying energy consumption data, voltage, current, and other metrics.
-
Wearable Devices: Small screens for fitness trackers, smartwatches, etc.
-
IoT Devices: User interfaces for connected devices.
-
Portable Electronics: Handheld gadgets, medical devices, and more.
-
Industrial Equipment: Status displays for control panels and machinery.
Product Advantages
1. High resolution: The 1.33-inch TFT screen can provide high resolution and high contrast, and users can get clear and vivid images and charts.
2. Energy saving: The TFT display screen adopts LCD technology, which can greatly save power and save battery life.
3. Bright colors: The TFT screen can provide high color saturation, and the image is brighter, truer and more vivid.
4. Wide viewing angle: The TFT display screen has a wide range of viewing angles, which not only greatly improves the user experience, but also facilitates shared viewing by multiple people.
5. Fast display speed: The TFT screen has a fast response speed and can support fast dynamic images and video streaming media, bringing users a good visual experience.
Company Profile
Royal Display Co., Ltd.
Specializing in the design, development, and production of LCD display modules for over 10 years, we provide comprehensive display solutions tailored to meet diverse industry needs.
Our product portfolio includes two main series: standard and custom-made displays. We offer a wide range of display technologies, such as:
-
Segment LCD Displays: Ideal for numeric and alphanumeric applications.
-
Character LCD Displays: Perfect for text-based interfaces.
-
Graphic LCD Displays: Suitable for complex graphics and icons.
-
COG (Chip-on-Glass) LCD Displays: Compact and reliable for space-constrained designs.
-
TFT Color Displays: High-resolution, full-color screens for vibrant visuals.
-
OLED Displays: Superior contrast and flexibility for modern applications.
-
7-Segment LED Displays: Simple and efficient for numeric indicators.
We support various film types, including TN (Twisted Nematic), HTN (High-Twist Nematic), STN (Super-Twist Nematic), FSTN (Film-compensated STN), and TFT (Thin-Film Transistor). Our advanced manufacturing processes, such as COG (Chip-on-Glass), TAB (Tape Automated Bonding), COB (Chip-on-Board), and SMT (Surface Mount Technology), ensure high-quality and reliable products.
With a production capacity of 300,000 LCD/LCM units per month, we cater to industries such as consumer electronics, industrial equipment, medical devices, automotive, smart home appliances, and IoT devices.
At Royal Display, we are committed to delivering innovative, high-performance display solutions that meet the evolving needs of our global clients.
