상세 정보 |
|||
| 디스플레이 크기: | 2.4 인치 | 해결: | 240*320 |
|---|---|---|---|
| 인터페이스: | SPI / MCU | 개요 크기: | 40.44 × 57 × 2 mm |
| 활성 영역: | 36.72 × 48.96 mm | 드라이버 IC: | ST7789V3 |
| 작동 온도: | -20 ° C ~ +70 ° C | 스토리지 온도: | -30°C ~ +80°C |
| 명도: | 400cd/m2 | 전압: | 2.4-3.3v |
| 보기 각도: | 80 ° (l/r/u/d) | 차이: | 1500 |
| 색상 배열: | RGB 수직 스트라이프 | 백라이트 유형: | 2 칩 흰색 LED |
| 디스플레이 기술: | TFT | ||
| 강조하다: | 240 RGB×320 Dots TFT LCD Display Module,400 cd/m² Brightness TFT LCD Screen,IPS Wide Angle TFT LCD Panel |
||
제품 설명

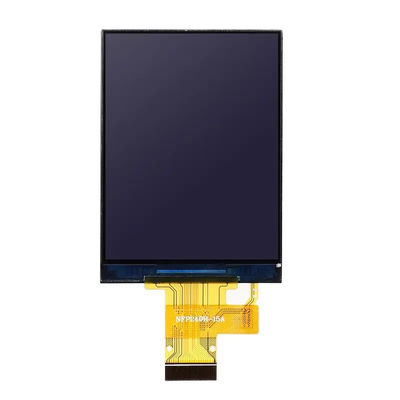

2.4inch 240 RGB×320 Dots TFT LCD Display Module
The N240-2432KBWIG15-C22 is a compact 2.40-inch IPS wide-angle TFT-LCD display module with a resolution of 240×320 pixels. This professional-grade display features built-in ST7789V controller IC, supporting SPI and MCU interfaces, with a supply voltage range of 2.4V~3.3V.
Key Features
- IPS technology with wide viewing angles (80° in all directions)
- High brightness: 400 cd/m² (typical)
- Excellent contrast ratio: 1500:1 (typical)
- Compact dimensions: 40.44×57×2 mm
- Wide operating temperature range: -20°C to +70°C
- Multiple interface options: SPI/MCU/RGB
Technical Specifications
| Model NO. | N240-2432KBWIG15-C22 |
|---|---|
| Size | 2.4 inch |
| Resolution | 240*RGB*320 |
| Interface | SPI / MCU/RGB |
| LCD Type | TFT-LCD |
| Outline Dimension | 40.44×57×2 mm |
| Operating Temp | -20ºC ~ +70ºC |
| Storage Temp | -30ºC ~ +80ºC |
Applications
This versatile display module is ideal for:
- Wearable devices and smart watches
- Portable medical equipment
- Industrial control panels
- Automotive displays
- Home automation systems
- Consumer electronics
Product Advantages
This high-performance display module delivers exceptional image quality with wide viewing angles and vivid colors. Its compact size makes it perfect for space-constrained applications while maintaining excellent readability and durability for continuous operation.
About Royal Display Co., Ltd.
With over 10 years of experience in LCD display manufacturing, we specialize in both standard and custom display solutions. Our product range includes TFT, OLED, COG, and segment LCD displays for diverse industrial applications.
Production Capacity: 300,000 LCD/LCM units per month
Supported Technologies:
- TFT, OLED, and COG displays
- TN, HTN, STN, and FSTN film types
- Advanced manufacturing processes (COG, TAB, COB, SMT)
