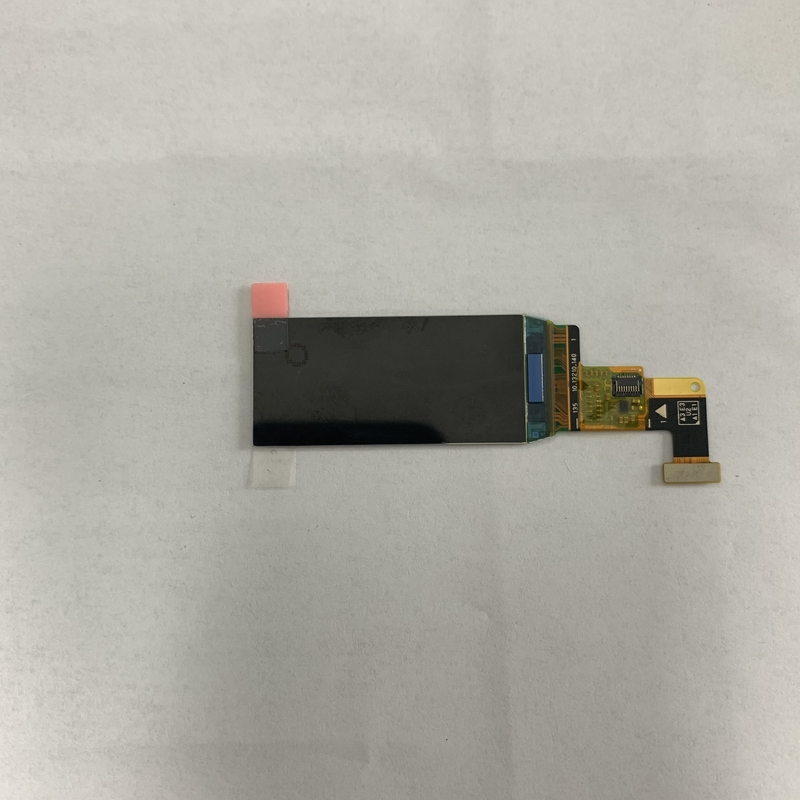

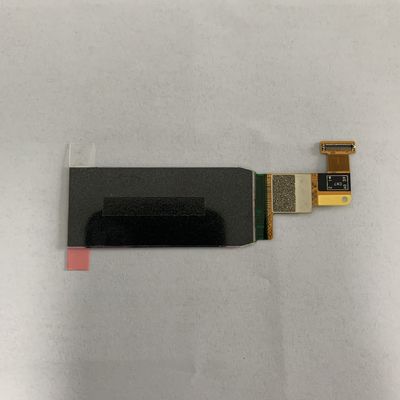

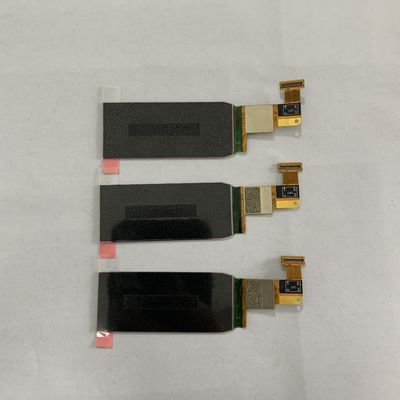

E1918AM3 1.91-inch AMOLED Display Module 240x536 Resolution MIPI Interface
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | Royal Display or ODM/OEM |
| 인증: | SGS, ROHS |
| 모델 번호: | E1918am3 |
결제 및 배송 조건:
| 최소 주문 수량: | 협상 가능 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자, 옥보, EPE, 물집 트레이. |
| 배달 시간: | 15 ~ 25 근무일 |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| 공급 능력: | 300K PCS/월 |
|
상세 정보 |
|||
| 모델: | E1918am3 | 디스플레이 기술: | Amoled |
|---|---|---|---|
| 대각선 크기: | 1.91인치 | 해결: | 240 (RGB) × 536 도트 |
| 활성 영역: | 19.80 mm × 44.22 mm | 픽셀 배열: | 실제 RGB 스트라이프 |
| 강조하다: | 1.91-inch AMOLED display module,MIPI interface display module,240x536 resolution AMOLED screen |
||
제품 설명
E1918AM3 1.91-inch AMOLED Display Module 240x536 Resolution MIPI Interface
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.
Product Description
| Item | Description |
| Model | E1918AM3 |
| Display Technology | AMOLED |
| Diagonal Size | 1.91 inch |
| Resolution | 240 (RGB) × 536 dots |
| Active Area | 19.80 mm × 44.22 mm |
| Pixel Arrangement | Real RGB Stripe |
| Pixel Pitch | 82.5 μm × 82.5 μm |
| Display Colors | 16.7M (8-bit RGB) |
| Interface | MIPI DSI |
| Glass Thickness | LTPS: 0.3 mm / Encap.: 0.2 mm |
| Module Weight | 2.16 G (TYP) |
Short Description:
The E1918AM3 is a 1.91-inch AMOLED display module with a resolution of 240 (RGB) x 536. The module employs LTPS technology and real RGB stripe arrangement, supports MIPI (1 Lane) interface, and features an ultra-thin and lightweight design.
Our Advantages
Over 10-year expert in LCD modules, 20,000m² own factory; 12-month product warranty
OEM/ODM and customization services available, Professional R&D team and overseas sales team
100% inspection before shipment; fast delivery time; Items carry RoHS, CE and SGS marks
Products widely used in instruments and handheld devices, and the medical and automotive industries
Application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
FAQs
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Product Overview
The E1918AM3 is a 1.91-inch AMOLED display module manufactured by EverDisplay Optronics (EDO), specifically designed for smart phones and other portable devices. Utilizing advanced LTPS (Low-Temperature Polycrystalline Silicon) technology and a real RGB stripe pixel arrangement, this module delivers 16.7 million colors, resulting in a visual experience rich with color, high contrast, and wide viewing angles. Its high definition resolution of 240x536 ensures sharp and detailed imagery. Data transmission is handled via a high-speed MIPI (1 Lane) interface, and it supports multiple power modes including Normal, Idle, Sleep, and Deep Standby to effectively optimize overall device power consumption. With an ultra-thin and lightweight structure, it is an ideal choice for applications demanding high-quality display and compact design.
Features
Broad selection of off the shelf products
Sunlight readable options available
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Customizable FPC cables, LED backlights, and bezels
